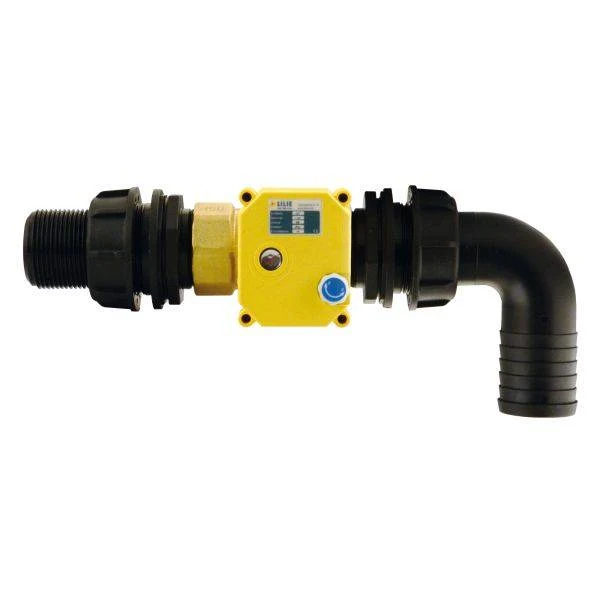

LILIE Ball valve – electric incl. changeover switch, 1″ | Flow rate: 490 mm²

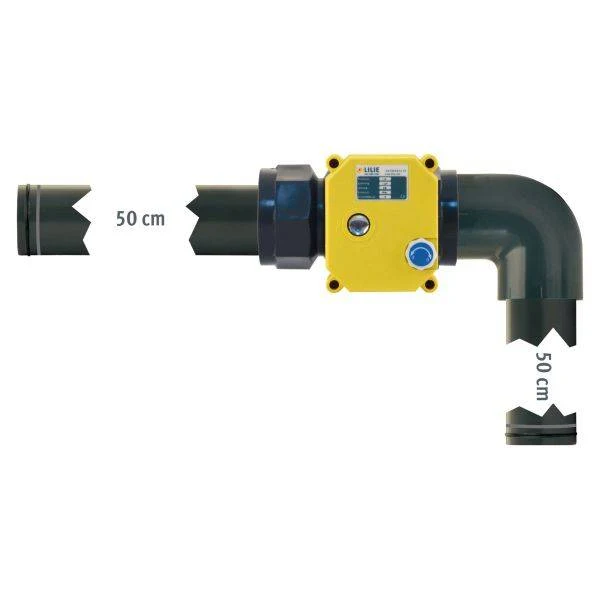

The LILIE GrauGELB® 40 mm pipe push-fit system with double O-ring connects pipes, ball valves, and sockets quickly, easily, securely, and leak-proof. O-ring 1 is fixed in the outer ring grooves of the pipe ends. O-ring 2 is positioned in the inner ring grooves of the valve body and sockets. When the pipe end is inserted, the two O-rings engage in their respective complementary grooves on the other component. The double O-ring seals and secures the connection. The connection remains flexible, allowing for readjustment. Unlike conventional gluing, this connection can be loosened and reassembled if necessary. Stress cracks are also prevented. All connectors shown can simply be pushed onto the pipe.

• certified drinking water
• manual emergency operation
• high drainage capacity
• robust and durable
• hot water resistant
• flexible

LILIE’s electric ball valve system conveniently opens, closes, and drains (waste)water circuits. A unique combination of various special functions ensures long-term reliability. The valve body features a high-performance actuator and is controlled via a 4-pole switch.

40 mm ø angled outlet nozzle.

Technical information
