LILIE Wastewater Drain Auto-Drain 1 1/2″ Valterra, Bristol

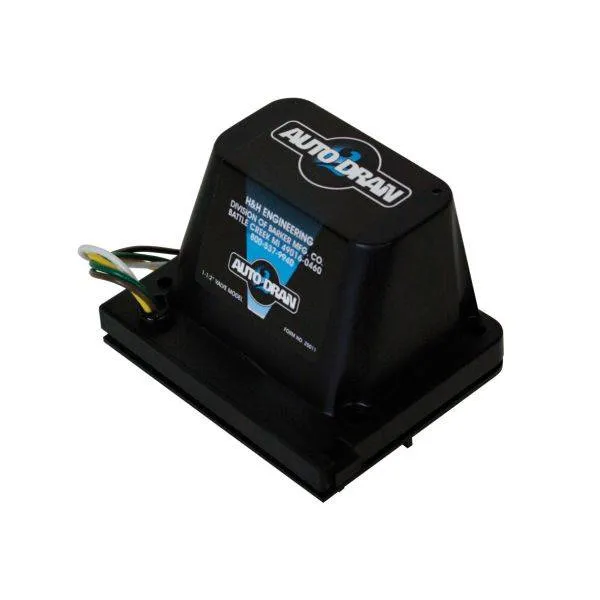

The 12-volt actuator is mounted directly onto the existing valve and connected to the special switch. The integrated timer only needs to be pressed briefly: the valve then opens or closes automatically within seconds. Includes mechanism, special switch, mounting hardware, instructions, and connection cable. Splash-proof installation!
- Emptys comfortably, cleanly, easily and automatically
- Long valve lifespan due to consistent actuation
- remotely controllable from any location and at the touch of a button
Scope of delivery: Motor (drain valves and adapters must be ordered separately).
Technical specifications: US system 1 1/2″
Drive unit (W x H x D): 100 x 80 x 130 mm; Switch (W x H x D): 100 x 40 x 50 mm.
Opening/closing time: 3 seconds.
For 1 1/2″ valves from Valterra and Bristol.
Technical information
| Nominal voltage | 12 V |
|---|---|
| Rated current | 0.1 A |
| Width | 169 mm |
| Height | 148 mm |
| length | 259 mm |
| Net weight | 568 g |
